| Product :- |
| |
All Our Products are manufactured as per ASHRE/ EUROVENT
Standard as per EN -779
Air Filters (pre & suction filters, fine filters, pocket filters.
Microvee filters, odour removed filters pleated cartridges.
| |
|
|

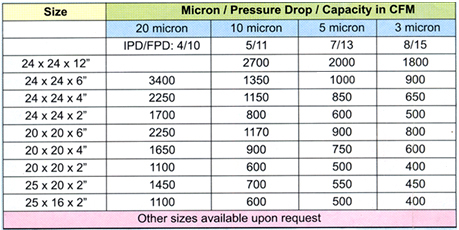

PRE FILTERS / MICROVEE FILTER / FINE FILTER
| Type : |
Box & flange |
| Frame : |
GI MS, Aluminium m.s. powder coated Anadiged Aluminium. s.s. |
| Media : |
HDPE , Nonwaven High tempreture Fabric |
| Efficiency : |
90-99% down to 15-3 micron |
Recommanded
final pr. drop
: |
40 mm wc |
| Temp : |
700c. max 1600c |
| All standard size: |
Customized size |

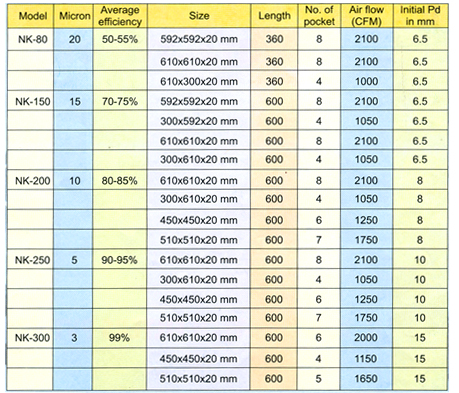

POCKTE FILTERS
| Type : |
Box & flange |
| Frame : |
Metallic sheets rods with with powder
coating |
| Media : |
Thermally bonded synthetic filter media |
| Efficiency : |
50-99% down to 20-3 micron |
Recommended
final pr. drop
: |
40 mm wc |
| Temp : |
700c. max |
| All standard size: |
Customized size |
PLEATED CARTRIDGE FILTER
| Type : |
Flange moc GI / Aluminium / s.s. |
| Frame : |
Synthetic cellulose with various treatment like
antistatic fire retardant , activated carbon
aluminium anti adhesive fluro carbon coating |
| Media : |
Thermally bonded synthetic filter media |
| Temp : |
Ambient to 1300c. max |
| DIA: |

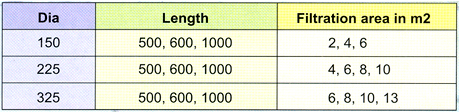

As per below given chart and
Customized size |

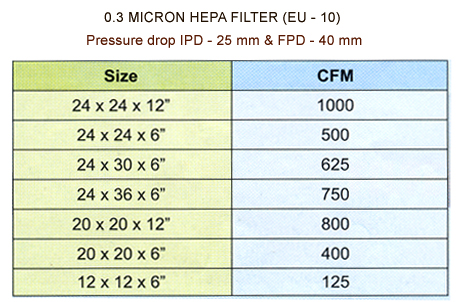

HEPA FILTERS
| Type : |
Box & flange |
| Frame : |
aluminium & s.s. |
| Sealant : |
Polyurethene |
| Media : |
Glass fibre |
| Efficiency : |
99-97% down to 0-3 micron |
Recommended
final pr. drop
: |
40 mm wc |
| Temp : |
1200c. max |
POLYURETHENE FOAM FILTERS
| Type : |
Plain sheets 2met x 1met width |
| Micron Rating: |
15 PPI to 60 PPI |
| Thickness : |
5 mm to 25 mm |
| Application : |
Rotary Drum filter uniform distribution filteration for take - up air in man made fibre (spinning) plant |
|
|
|
|
 |
