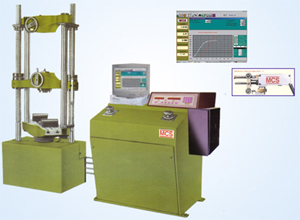

Material Testing Equipments

• Microprocessor based control Unit
• For hydraulic Machines preseure cell is used
• For Screw drivern machines load cell used
• Cross head displacement measured by rotary encoder
• For Screw driven machine DC/AC servo drives are used

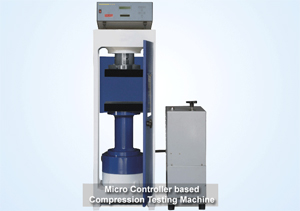

The machine is designed to carry out compression tests on materials like concrete, cement as well as finished products like tiles, bricks, blocks and other relevant materials. The machine can be used for quality control departments, civil test laboratories, engineering colleges And are adeally suitable for on-site testing for quality control and/or laboratories.

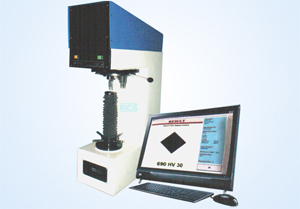

MCS Computerized Vickers Hardness Tester is a simple and a accurate means which loads and unloads the specimen and creates an indentation. This indentation is accurately measured by CCD camera and suitable optics. Specially developed image processing software measures the diagonal of indentation and converts it into Vickers Hardness no. This machine is suitable for measuring the hardness of precision metallic parts with wide testing range. These testers strictly confirm to IS 1754 - 2002.

Construction :
The robust machine frame is designed to accommodate the high precision loading. Specimen is placed on a testing table. The test cycle is fully automatic. The accurate load is applied on a diamond indentor by means of a lever and weights. After a specific image is digitized using a CCD camera fitted on the indentation are automatically measured by PC to give the Vickers Hardness Number.

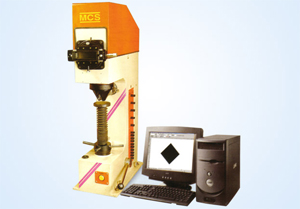

MCS Make Hardness Testers of Vickers series are designed and manufactured for very high accuracy. ease of operation, reliability and long-term stability. These machines are suitable for checking Vickers or Brinell Hardness of steel and other metals Loads are applied with dead weights and are selectable with a push button.

The measurement of Diagonal / Diameter of indentation is done with the help of built-in optical system with graduated readout with micrometer After taking the indentation on workpiece the objective lens is automatically swivelled in position and indentation image appears on the focusing screen fitted in the front of the machine. Loading cycle is started with push button in the front where unloading is done manually by a hand lever

General Discription :

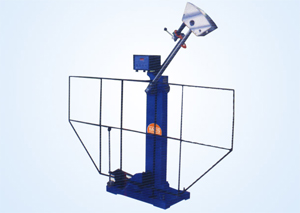

MCS make Pendulum type Imapct Testing Machine Model MIT-30 is designed fro conducting Izod & Charpy test. The test confirms to BS:131: PART IV 1972 (1993) BSEN:1993

The pendulum is mounted on antifriction bearing. It has two starting positions, for Charpy test pendulum swings down to breack the specimen and the enery absorbed in the specimen is between height of drop before rupture and the height of rise after rupture of test specimen. The reading is shown on dial scale from maximum pointer positon. MCS has developed electronic model MIT - 30 (E) microprocessor based panel with digital display. The reading is directly available on digital display. It aslo provided printer interface.

There are two strikers and one combined support available for fitting in to the pendulum and on to the base of the machine for Izod, Charpy test. Changing from one striker to another is achieved simply by fixing the new striker into it's position.

Introduction :

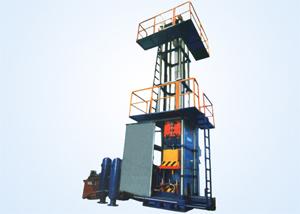

"MCS" developed it's first Drop Weight Tear Tester (DWTT) in the year 1999 for the maximum energy level of 30,000 Joules. Over the time, MCS commitment to excellence resulted in development of fully automatic PLC controlled DWTT with Hydraulic Shock Absorbers for drop weight tear testing of "Specimen" according to the standards ASTM-E436, API-RP5L3, ASTM-E208 and DIN EN 10274.

Now we offer three different automatic PLC controlled DWTTs;
• MCSTT-300000 J
• MCSTT-55000 J
• MCSTT- 80000 J

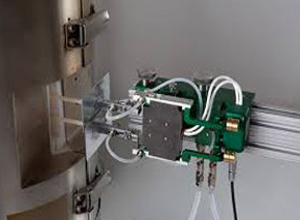

MCS offers different types of extensometers to meet varying industry needs :
• Axial Extensometers for metals, ceramics, FRP material Gauge length
  10 mm to 50 mm with extension 50%
• High Temperature –Axial Extensometers – up to 600 deg cel Gauge
   length 10 mm to 50 mm with extension 50%
• Transverse/ Diametral type Extensometers at room temperature for
   r-value and Ag/Agt value evaluation
• Long Travel Extensometers up to breakage for elastic material with
  variable gauge length and maximum extension 500mm
