PRODUCTS |
| |
|
| |
|
| |

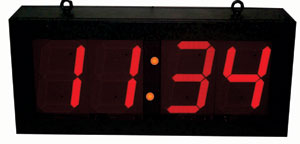

ETHERNET BASED ALARM CLOCK |
| |
 |
| |
This system is designed with a latest technology having a TCP-IP communication facility. In this system, your existing LAN Network will be utilized for time synchronizing and Alarm Programming.
PC will be connected to your existing LAN network through LAN switch & Dynatek Time Software will be loaded to PC now this PC acts as a Master & communicates “ PC TIME” and programming of different Alarm schedule, Assign of schedule for each day and Yearly holidays. |
| |
|
| |
|
| |

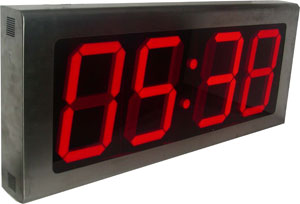

ETHERNET BASED CLOCK |
| |
 |
| |
This system is designed with a latest technology having a TCP-IP communication facility. In this system, your existing LAN Network will be utilized for time synchronizing.
PC will be connected to your existing LAN network through LAN switch & Dynatek Time Software will be loaded to PC now this PC acts as a Master & communicates “ PC TIME” to all the clocks connected in LAN network. Hence there is no need of a separate Master Clock. Master PC will be provided with GPS receiver(optional) to synchronize GPS TIME. There is no need to keep the PC continuously “ON”, because each slave clock is provided with RTC hence it works as a standalone clock, therefore even though a PC is not in operation for 1 or 2 days all the clocks will show uniform time. |
|
| |
|
| |

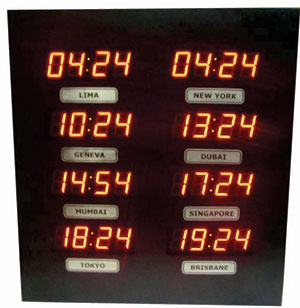

INTERNATIONAL TIME ZONE CLOCK |
| |
 |
| |
DYNATEK Time - zone clocks are designed and manufactured to meet the requirements of the most demanding, prestigious and reliability critical applications in dealing rooms, command, control and communications facilities, conference and reception areas.
DYNATEK Time – Zone clocks are designed with a latest technology having a TCP-IP communication facility and provided with “Dynatek Time Software” which will be loaded to PC in existing LAN Network. This PC acts as a Master and communicates “ Time Data “ (GMT + Offset ) to every zone clock. |
|
| |
|
| |
RS485 COMMUNICATION CLOCK |
| |
 |
| |
2.0.1 Master / Slave type1 :
In this system,Master & Slave Clocks are provided RS-485 communication facility. A simple two wire twisted pair cable is required to connect Master & Slave Clock together to form the synchronize network system.Mater clock communicates Time data at fixed interal of 15 minute.
2.0.2 Master / Slave type2 :
In this system all Slave clocks are connected to your PC through RS-232 to RS-485 converter to form a synchronized network. PC acts as a Master & controls all slave clocks by transferring Time data at set intervals.
Master PC can be provided with GPS receiver ( optional ) to synchronize with GPS TIME. |
| |
THREE WIRE MIDNIGHT PULSE |
| |
|
| |
In this system Master clock generates 12V DC impulse at Mid-night and all the connected slaves gets Reset at 00:00 (24H mode).
In this system 2 wire is used for supply to connected slaves and remaining 1 wire is used for midnight pulse. DYNATEK Slaves have opto-coupler interface to accept that as synchronizing Midnight impulse.
This system is used only in upgrading of older installations, where a number of old electro-mechanical clocks exists and have to be gradually updated to digital clocks by using existing cable net-work. |
|
| |
|
| |
|
| |
|
| |
|
| |
