We Are Manufacturerers of Magnetic Products, Magnetic Lifters |
|
Permanant Magnetic Lifters |
|
|
Permanent magnetic Lifter is a device, which consist of permanent magnets. It used for material handling. This device is energized and de-energized (ON-OFF) by simply turn of lever (Handle). No external power supply is required for operating it. We provide three times factor of safety in it, which means, if lifter is recommended for 100 Kgs weight lifting capacity it has been tested for 300 kgs lifting capacity. Consider 40% lifting force (recommended capacity) while lifting round job due to its line contact. For 100% lifting force (recommended capacity) while lifting flat surface job. The following photograph can explain the product & its utilization briefly. |
|
|
|
|
|
|
|
|
|

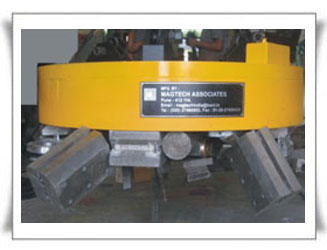

Electromagnetic Lifter For Scrap |
|
|
This special type of Electromagnetic Lifter is specially design for SCRAP LIFTING. This device is required continues D.C. power supply for energized (ON). The effectiveness of lifting is depends on the contact surface of scrap. The following photograph can explain the product & its utilization briefly.
|
|
|
|
|
|
|
|
|
|
Magnetic De-Stacker ( Sheet Separator ) |
|
|
Magnetic Sheet Separator are used for separation of single sheet from stack, these sheets are separated one —by-one from top to bottom. It saves energy and increasing productivity. This separator can be design as per sheet size and stack height. It's also suit for Robotic Sheet Conveying System so that single sheet can be lifted by Robot and it avoid depositing two sheets at a time in Press Die. It is also suit for manually operation so that press operator can easily pickup one sheet at a time The following photograph can explain the product & its utilization briefly.
|
|
|
|
|
|
|
|
|
|
|
Electromagnetic Chucks |
|
|
Electromagnetic Chucks are designed for GRINDING, LIGHT MILLING, and TURNMNG operations. It generates strong magnetic force to hold work piece in rigid manner. These chucks are operated on D.C. Power Supply. There is no internal wear and deformation corresponding to movement of internal parts, which provides a better life than conventional 'Permanent Magnetic Chuck' According to the work piece POLE GAP, POLE PITCH, POLE WIDTH, POLE STYLE can be defined. Following tests are applied to inspect a chuck:-
1) Resistant to Earth Terminal Test
2) Demagnetizing Test
3) High Voltage Test
4) Leak Proof Test
|
|
|
|
|
|
|
|
|
|
|
|
|
