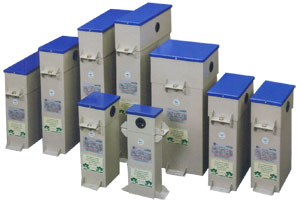

Low Voltage Reactive Power Management |
|
A vast majority of electrical loads in low voltage industrial installations are inductive in nature.
Typical examples are motors, transformers, drives & fluorescent lighting. Such loads consume both active and reactive power.
The active power is used by the load to meet its real output requirements whereas reactive power is used by the load to meet its magnetic field requirements.
The reactive power (inductive) as always 90 deg lagging with respect to active power as shown in figure 1,
figure 2 & 3 show the flow of kW, kVAr and kVA in a network.
Flow of active and reactive power always takes place in electrical installations. This means that the supply
system has to be capable of supplying both active and reactive power. The supply of reactive power from the
system results in reduced installation efficiency due to: |
|
• Increased current flow for a given load
• Higher voltage drops in the system
• Increase in the losses of transformers, switchgear and cables
• Higher kVA demand from supply system as given in figure 2
• Higher electricity cost due to levy of penalties / loss of incentives |
|
|
| |
Medium and High Voltage Power Capacitors |
|
General Information
Magnewin make capacitors are manufactured to comply IEC 60871 and BIS 13925 standards using latest
technology, materials and state of art plant and machinery.
Experienced and skilled workmanship enable's to manufacture highly reliable and long life performance capacitors in line with International standards. |
Applications
Automatic Power Factor Correction (PFC).
• Fixed Power Factor Corrections. (Individual)
• Group fixed Power factor correction (several equipment connected in a group)
• Capacitor banks of tuned and detuned.
• Harmonic Filter applications (e.g. UPS, VFD, Furnaces and converters, etc) |
|
|
|
|
|
| |

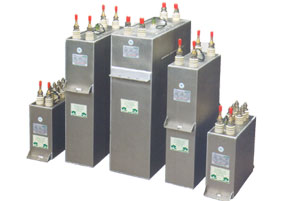

Water Cooled Capacitors ( Medium Frequency ) |
|
| General Information |
| Scope |
Medium Frequency Water Cooled Capacitors from 1 kV up to maximum 5000 volts, to maximum 7000 kVAr and frequency up to 50 kilocycles for indoor use.
• with dead casing, open terminal (2 bushings).
• with live casing, open terminal (1 bushing). |
| Standards |
• IEC 60110-1 Capacitors for Induction Heating & Melting application.
• BIS 9251 (Indian standards).
• DIN EN 60110-1 Power capacitor for Induction Heating Installations.
• VDE 05650-9:1999-09
• Capacitors in accordance with other standards, available upon request. |
|
|
|
|
|
| |

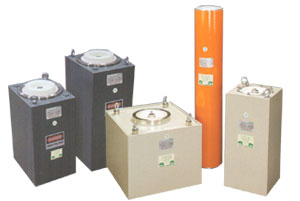

Energy Storage Capacitors |
|
| General Information |
| Scope |
DC capacitors up to 150 Kv DC, energy up to 20 kilojoules, and inductance as low as 40 nH manufactured using biaxially oriented hazy propylene film as dielectric, aluminum foil as electrode and impregnated with Non-PCB as impregnant. These capacitors are designed for use in Energy Storage and discharge applications.
• with dead casing, open terminal (2 bushings).
• with live casing, open terminal (1 bushing). |
|
|
|
|
|
| Special Application Capacitors |
| |
| |
|
|
We are Leading Manufacturers of Power & Special application Capacitors and our set up is situated at Sangli, Maharashtra INDIA
|
|
|
|
