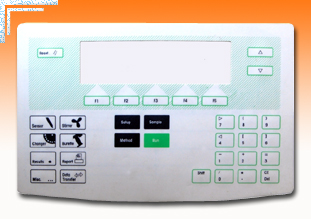

Membrane Keyboards |
||||||||||||||||||||||
  |
||||||||||||||||||||||
A Membrane Keyboard has two screen printed polyester films with conductive ink to form the circuit layers of the keyboard. Between the two circuits, a die cut spacer at contact points is placed. To complete the circuit a touch of finger on the die cut holes allows to close the contact. Upon release, the circuit is broken. Input device user identifies specific keyboard contact through a Graphic Overlay. For interfacing with the customer’s electronics, the panel back is laminated with an adhesive for mounting on a backer or enclosure which can be terminated to a male/female clincher connector. |
||||||||||||||||||||||
------------------------------------------------------------------------------------------------------------------------------- |
||||||||||||||||||||||

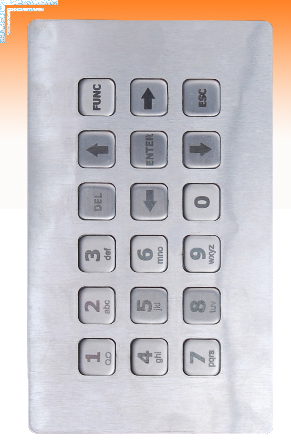

Metal Keyboard |
||||||||||||||||||||||
 |
||||||||||||||||||||||
These are vandal-proof keybord used in public utility appliances like kiosks at railway stations, airports, bus stands, passenger lifts. Made from stainless steel it is strong and sturdy with clear panels. Available in custom-made design with Ps2 interface, which can marked with laser technology for permanent usage. Metal surface is available in gloss (mirror) or matt finish, subject to various degree of moisture or high humidity are engineered and constructed accordingly. We provide stainless steel/plastic tracker ball or touch pad with in built keyboard with USB/Ps2 interface.
|
||||||||||||||||||||||
------------------------------------------------------------------------------------------------------------------------------- |
||||||||||||||||||||||
Silicon Rubber Keyboard |
||||||||||||||||||||||
 |
||||||||||||||||||||||
Moulded silicone rubber keypads can be used in a variety of applications to enhance tactile feedback, sealing and aesthetics. Rubber keypads can be supplied as a separate part or designed into a keypad assembly utilizing a broad range of switch panel capabilities. Rubber can also be screen printed or laser-etched to provide key information to the user. Various coatings are also available.
|
||||||||||||||||||||||
------------------------------------------------------------------------------------------------------------------------------- |
||||||||||||||||||||||
Rubber Keypads |
||||||||||||||||||||||
 |
||||||||||||||||||||||
Moulded rubber keypads can be used in a variety of applications to enhance tactile feedback, sealing and aesthetics. LinePro can supply the rubber keypads as a separate part or designed into a keypad assembly utilizing a broad range of switch panel capabilities. Rubber can also be
screen printed or laser-etched to provide key information to the user. Various coatings are also available. With strong design, pre-production support and global supply chain management capabilities, LinePro is well positioned to supply the right switch panel solution. Rugged keypads can be front or rear-mounted and the rubber booted “Seal-A-Key” design is a standard feature that can be used to hermetically seal the unit from environmental contamination. |
||||||||||||||||||||||
------------------------------------------------------------------------------------------------------------------------------- |
||||||||||||||||||||||
