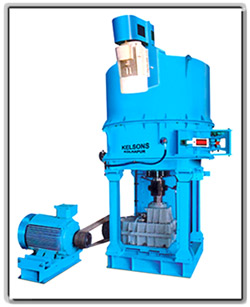

Intensive Mixer [Model KIM-500-60] |
| |
| • KELSONS INTENSIVE MIXER is of unique and sturdy design. Preparation process is highly efficient and the mixer ensures prepares sand with excellent molding quality, within a very short duration. |
| • PANEL BOARD is of Sturdy fabricated from 14/16 Swg CRCA & is Dust free and vermin proof |
| • BATCH HOPPER This batch hopper is duly assembled with Pneumatic Cylinder with inline Airflow Control Valve. & has a provision for attachments of Load Cell for Auto Cycling. |
| • SCREW FEEDER Consists of Hopper with Stand for Bentonite |
| |
| Salient Features |
| STURDY CONSTRUCTION |
-
Sturdy & Robust Design.
-
Assembling & disassembling process is easy for preventive & routine maintenance.
-
Heavy structure for doors hinges & brackets.
-
Special scrappers to clean edges of main body shell.
-
Rotor Blades Very Sturdy, Free & Proper Lubricated, Fine Angular & Carbide Tips Brazed.
-
Mechanical Seals For Motor
-
Cycle time – 90/120 seconds for 500 Kg batch.
|
| |
ADVANCED ATOMIZATION |
| |
|
|
|
| |
|
|
| |
|
| |

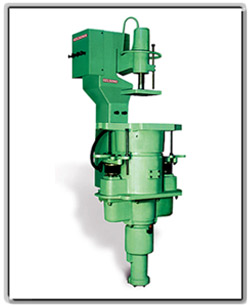

Pneumatic Jolt Squeeze Molding Machine |
| |
KELSONS Make Pneumatic Molding Machines provide you best and quick service, because of its sturdy construction and all major parts are made from S.G. Iron and FG-260 Grade to reduce ware and tear, which minimize your preventive maintenance time and gives you life long service. Machine operating is easy to increase your productivity with related to minimum maintenance. It has positive impact on production. |
| |
Technical data |
KPL-2 |
KPL-3 |
Jolt Capacity in Kgs |
280 |
350 |
Squeeze Force in Kgs |
5000 |
7200 |
Pattern Drawn mm[inch] |
205[8”] |
260[10”] |
Table Size [mm] |
29” X 21” |
38” X25” |
Squeeze Stroke [mm] |
76 |
100 |
Shipping Specifications |
KPL-2 |
KPL-3 |
Net Weight in Kg. |
1200 |
1900 |
Gross Weight in Kg. |
1500 |
2400 |
Case Dimensions in Ft. |
8 X 3 X 4 |
10 X 5 X 5 |
|
|
|
| |
|
|
| |
|
| |

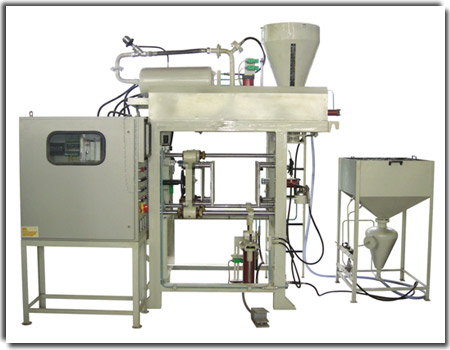

Core Shooter |
| |
Kelsons Make Core Shooters Are Of Two Type |
| A] FULLY AUTOMATIC |
| |
All the operations have timer, and hence each operations can be set as per required time and the machine operates as per the time settings, sand feeding to sand shooting tank is also automatic. |
| |
SALIENT FEATURES |
-
Proven sturdy and job rated equipment.
-
Heavy-duty bars for core box carriage plates.
-
Pneumatic clamping system for two halves of core.
-
Built in control system to facilitate various operation
-
Facility of auto repeat cycle operation.
-
Auto/Manual mode selection facility
-
Safety interlocks incorporated in the control system.
-
Air blow gun for cleaning purpose.
-
All movements by means of pneumatic cylinders.
|
|
|
| |
|
B] SEMI AUTOMATIC |
| |
All the operations are manual and each operation is manually operated. [All operations are done by push buttons/ Switches], sand feeding to sand shooting tank is manually. |
| |
| SALIENT FEATURES |
| |
-
Proven sturdy and job rated equipment.
-
Heavy-duty bars for core box carriage plates.
-
Pneumatic clamping system for two halves of core.
-
Built in control system to facilitate various operation of equipment.
-
Safety interlocks incorporated in the control system.
-
All movements by means of pneumatic cylinders.
|
| |
MODELS AVAILABLE OF SHELL CORE SHOOTER MACHINE |
SR. NO. |
MODELS |
TYPE |
FOR CORE SIZE UP TO |
1. |
KCS-FA-34 |
FULLY AUTOMATIC |
300 X 400. |
2. |
KCS-FA-36 |
FULLY AUTOMATIC |
300 X 600. |
3. |
KCS-FA-46 |
FULLY AUTOMATIC |
400 X 600. |
4. |
KCS-FA-57 |
FULLY AUTOMATIC |
500 X 700. |
5. |
KCS-SA-34 |
SEMI AUTOMATIC |
300 X 400. |
6. |
KCS- SA-36 |
SEMI AUTOMATIC |
300 X 600. |
7. |
KCS- SA-46 |
SEMI AUTOMATIC |
400 X 600. |
8. |
KCS- SA-57 |
SEMI AUTOMATIC |
500 X 700. |
|
|
|
|
| |
|
| |
Hot Box Type |
|
|
(MODELS AVAILABLE FOR ABOVE TYPES OF SHELL CORE SHOOTER MACHINES) |
| |
SR. NO. |
MODELS |
TYPE |
FOR CORE SIZE UP TO |
1. |
KCS-FA-34 |
FULLY AUTOMATIC |
300 X 400. |
2. |
KCS-FA-36 |
FULLY AUTOMATIC |
300 X 600. |
3. |
KCS-FA-46 |
FULLY AUTOMATIC |
400 X 600. |
4. |
KCS-FA-57 |
FULLY AUTOMATIC |
500 X 700. |
5. |
KCS-SA-34 |
SEMI AUTOMATIC |
300 X 400. |
6. |
KCS- SA-36 |
SEMI AUTOMATIC |
300 X 600. |
7. |
KCS- SA-46 |
SEMI AUTOMATIC |
400 X 600. |
8. |
KCS- SA-57 |
SEMI AUTOMATIC |
500 X 700. |
|
| |
|
|
| |
| |
|
