| Johnson Plastosonic (P) Ltd. is located at Industrial city of Pune, India. Johnson Plastosonic has vision to make world class trouble free ultrasonic equipments at competitive costs. By investing heavily in development Johnson has made India's 1st ultrasonic welding generator with auto tunning facility. Johnson Plastosonic (p) ltd. Has more than 12 years experience in ultrasonic welding systems. The equipments are designed state of the art advance equipments to suit your needs. |
PRODUCTS |
| |
• Bench type Ultrasonic welding machines
|
• Ultrasonic hand held gun |
|
The machines are available in Different Frequencies & Power |
|
Frequency : |
|
Powers : |
|
15 khz for bigger jobs |
|
200w, 1000w, |
|
20 khz industrial standard & |
|
1500w, 2000w & 2500w. |
|
35 khz for precise applications |
|
|
|
|
| |
|
|
Ultrasonic Generators |
|
Features:
• Microcontroller based
• Auto tunning facility
• IGBT based efficient power circuit
• PLC interface. 4 line backlit LCD display
• Parts counter
• LED power indicators
• Variable 5 programs memory
• 3 different timings - delay, weld a hold Various self diagnosis indicators :
• high/low frequency, overload, high
voltage etc.
• Variable amplitude facility available.
• Electronic amplitude select ion.
• No need to change booster
• Weight: 16kg. |
|
| |
Ultrasonic Welding Stand |
• Rugged round column with increased height
ovarious force models available (cylinder bore 11/2" ,2",3" ,4")
• Double acting cylinder
• Parallelity adjustment plates
• Throat depth 250mm
• Micro-positioning facility
• Hand driven gear type or optional motorized up down
• Iron caste heavy base
• Weight: 88 kg |
Accessories required :
clean & dray air ® 2 CFM
1 phase stabilized electrical supply.
Welding Guns
Ultrasonic welding guns are used to weld thermoplastic, where areas of welding are hard to reach & the parts
are too bigger to weld.
• Pistol type & straight staple type guns available.
0 Easy grip guns available with less diameter.
Ultrasonic Sealing M/C
• High quality connectors used to lessen loose connections.
• Available in two frequencies: Special 20 khz & 35khz.
Horns & fixtures
• Johnson's wide experience supports for successful application development of your welding needs
• Johnson has got experience & strength to develop your
application & tooling needed to make success which is very
crucial in ultrasonic welding.
• Horn can be made in tool steel, Special aluminum alloy &
titanium alloy.
• Fixtures can be made to suit the needs.
• Steel horns are heat treated , while aluminum horns are
hard anodized to sustain long period.
|
| |
|
ULTRASONIC FOR PACKAGING APPLICATIONS |
|
Johnson Plstosonic (P) Ltd. is located at Industrial city of Pune, India. Johnson Plstosonic has vision to make world class trouble free ultrasonic equipments at competitive costs. By investing heavily in development Johnson has made India's 1st ultrasonic welding generator with auto tunning facility. Johnson Plastosonic (P) Ltd. has more than 12 years experience in ultrasonic welding systems. The equipments are designed state ofthe art advance equipments to suit your needs. In the competitive market&. environment appropriate packing of finished product is most essential. Ultrasonic welding has significant contribution in modern packaging. Mostly the advanced materials are thermoplastic based materials which are conveniently weld by ultrasonic vibrations. Johnson Plastosonic decided to make value adding contribution for packaging. Company has specially made cost effective reliable products for. |
| |
|
| PRODUCTS |
|
ultrasonic pp corrugated box welders.
ultrasonic pp box welders.
ultrasonic fabric sealers.
ultrasonic blister packaging machines.
ultrasonic pp woven sack welders |
|
| |

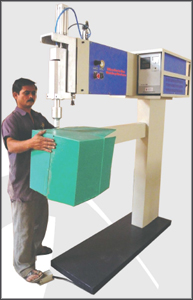

| Polypropylene corrugated Box welding machine |
PP corrugated boxes are fast replacing traditional corrugated boxes. In the case staples are fast replaced by ultrasonic welding. Advantages of ultrasonic welding are.
1) No scratch guarantee for packed items.
2) No rejection of packed items.
3) Better aesthetic looks.
4) No corrosion of joints means
healthy packaging.
5) Low running costs. |
| |
Johnson plastosonic have variety of reliable products for PP box welding those are
1) Ultrasonic hand held gun for manual
operation.
2) Stand type pneumatic based system .
3) Multihead ultrasonic welding system.
Johnson Plastosonic has made multihead ultrasonic welding system .In the system we can weld upto 1100mm sheets in a single shot of 4 sec. duration. Manual movements of sheets are not required and takes very small time to make pp boxes. |
| |
|
ULTRASONIC PP BOX WELDERS
Johnson Plastosonic has provided no. bench type welding machines to weld pp boxes.
ULTRASONIC BLISTER PACKAGING MACHINES.
ULTRASONIC PP WOVEN SACK WELDERS. |
|
| |
Accessories required :
clean a: dray air ® 2 CFM
1 phase stabilized electrical supply. |
| |
ULTRASONIC FABRIC SEALERS
Due to environmental compliances HOPE bags LOPE bags are fastly replaced by PP non-woven fabric bags. Johnson Plastosonic provides state of the art Indian make ultrasonic generators & horn assembly for bag making machines. Don't be in trouble for imported ultrasonic generators & systems. Replace it by Johnson's Indian made systems. Johnson gives continuous high speed fabric sealers for bag making machines. |
| |
ULTRASONIC TUBE SEALING MACHINES
Johnson Plastosonic makes tube sealing machines for thermoplastic extruded & laminated tubes.
The machine are high speed machines having advantages of low rejection ratio, no heating problem : which generally occurs in hot air& hot plate tube sealers. Used in
* Cosmetics application
* Pharmaceutical applications
* Gum & bonding adhesives
* Personnel care products
Automatic index type machine & lab type models are available with / without cutting trimming coding in 20khz & 35khz frequencies. |
Also Manufacture
Ultrasonic Metal Welders
Liquid Processors
Machining Centers
Horn Analyzers |
| |
|
