Products

Gemel Valves

Applications :

Pressure control
Lubrication
Air bleeding
Oil sampling

Materials :
Galvanised carbon steel
(Stainless steel AISI 316 is available on request)

Sealing :
NITRILE BUNA N (NBR)
FKM - VITON, (on request)
Working temperature:
-30°C...+125°C (NITRILE BUNA N)
-25°C...+230°C (FKM)

Fluids :
Hydraulic oils
Mineral oils
Suitability with other fluids on request

Micro hose for high pressure and fittings

* Test coupling threaded female fitting
* Test coupling threaded female fitting with hexagonal nut
* Gauges threaded fitting
* Swivel female fitting 60 deg cone connection type DKR
* Swivel female fitting 24 deg cone connection type DKR
* Swivel female fitting 24 deg cone connection type DKOL
* Swivel female fitting 24 deg cone connection type DKOLL
* Swivel female fitting 24 deg cone connection type DKOS
* Swivel female fitting JIC 74 deg cone connection type DKJ
* Standpipe fitting
* Banjo fitting and banjo screw
* Male fittings
* JIC 74 deg male fittings
* 115 deg male fittings
* Plugin connection
* ORFS female fitting, UNF thread
* ORFS male fitting, UNF thread
* Ferrule

Portable hydraulic instruments for pressure testing

Test kits are made for connecting any hydraulic equipment with standard threaded test couplings M16x2 and fitted micro hose.

Pressure gauges are fitted with a Bourdon spring and liquid filled (glycerine 99.7%) according to DIN 16005.

Diameter 100 mm accuracy 1%.
Diameter 63 mm accuracy 1.6%.

Each kit is supplied with a 2 meter micro hose and gauges chosen from these ranges in bar:
1..0 - 0,6 - 1 - 1,6 - 2,5 - 4 - 6 - 10 - 16 - 25 - 40 - 60 - 100 - 160 - 250 - 315 - 400 - 600 - 1000.

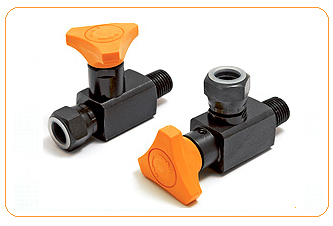

Pressure gauges	Pressure Gauge Anti Shock Valves	In-line Flow Indicators
