Pneumatic Cylinders

Standard range of Pneumatic Cylinders are designed to work at 10kg/cm2 pressure.

Standard cylinders are available from 12mm bore to 350mm bore size with various mounting arrangements.

Custom made cylinders are also manufactured according to the specific application requirement.

We have expertise in following range of Special Cylinders :

• Double Ended Cylinders, Single Acting Cylinders.
• Adjustable Stroke Cylinders.
• Tandom Cylinders.
• Telescopic Cylinders.
• Magnetic Cylinders with reed switches.
• Cylinders in different material of constructions – like Aluminum, Brass, S.S. & M.S.
• Cylinder with built in valves for continuous receprocation just like reciprocating pumps.
• Cylinders for high temperature applications above 80 degree centigrade upto 250 degree centigrade.
• Special Cylinders to operate in corrosive atmosphere, water etc.
• Impact Cylinders.
• Hydro check feed units.
• Pneumatic Boosters.
• Cylinders with special mounting arrangements.
• Cable Cylinders for space saving & concentric load application & long stroke application.
• This range is manufacture from Bore size 40mm to 100mm & stroke ranging 500mm to 4000mm.
• Non rotating cylinders.

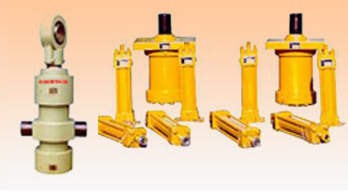

Hydraulic Cylinders

We have expertise in following range of Hydraulic Cylinders :

• Hydraulic Cylinders are manufactured for applications where pressure is ranging from 10 kg/cm2 to 400 kg/cm2.
• Standard Cylinders are available with robust design for working pressure of 160 kg/cm2 & test Pressure of 200 kg/cm2.
• Custom made Hydraulic Cylinders are manufactured according to the specific dimensions, pressure & temperature requirements.
• Hydraulic cylinders are manufactured from 32mm bore to 350mm bore size with various stroke lengths.
• Tubings for the Hydraulic Cylinders are M.S. Honned & Hard Crome Plated & Piston Rods are EN8 Ground & Hard Crome Plated.
• Tie rod construction as well as welded construction designs are available.

Hydraulic Power Packs

Hydraulic Powerpacks are designed & manufactured as per specific application requirement.

These are very sturdy & reliable power packs built with hydraulic elements of reputed make & provide international mounting & connections with manifold style assembly.

Hydraulic Cylinders & Presses

Hydraulic Cylinders and Power Presses are made available for specified applications, where only compressed air is available & output requirement various from 2 T to 40 T.

With air input of 4-5 kg/cm2, we can accomplish the various applications like revetting, bending, piercing, shearing, punching etc.

Various manual as well as electrical controls are available.

Accessories like non rotating applications, two hand safety controls are available.

These are low maintenance, clean, High Speed machines with low cost.

These Hydropneumatic Cylinders eliminate the requirement of Power Packs & Hydraulic Cylinders.
