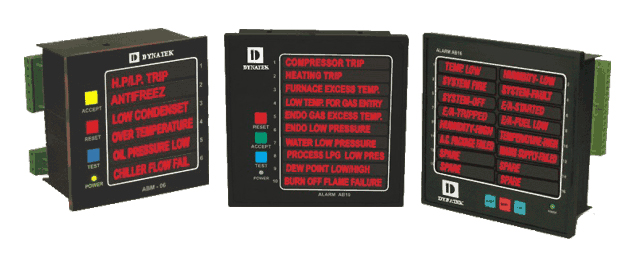

Alarm Annunciator |
| TOP |
 |
| TOP |
|
| Sailent Feature - |
| |
| • |
Based on latest “Micro-controller” technology. |
| • |
Sleek, Compact design for reliable and accurate operation. |
| • |
Series of super bright LED's instead of twin filament lamps for ultimate life at very less power consumption. |
| • |
Fault input contacts NO/NC site selectable by means of DIP switches. |
| • |
Opto-isolated all fault inputs, immune to noise disturbances. |
| • |
Provision for external audible (Bell or Hooter) through potential free relay output contact. |
| • |
Built-in mebran switches for Test, Accept and Reset functions. |
| • |
Various Time delays 100ms,500ms,1Sec,2Sec,Provided for input faults to avoid noise or malfunction. |
| • |
Two part connector ensures easy replacement and service at site. |
| • |
Dual flashing rate for first fault 300 flashes / min. & Subsequent fault 60 flashes / min. |
| • |
Any specific sequence available on demand. |
|
| TOP |
| ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| |
Fire Engine Control Panel |
| TOP |
 |
|
| Introduction - |
| TOP |
DYNATEK make Fire Engine Control panel is most compact user friendly, Highly reliable Fire Engine Control System. This is provided with Microcontroller based Diesel Engine Controller “ECR16” with Audio / Visual Alarm and Battery charger with Ammeter / Voltmeter. |
| |
ECR 16 Controller is developed to start engine in Auto / Manual mode. In auto mode Controller continuously scans “HYDRANT PRESSURE”, if it drops Controller cranks engine automatically through start relay. When engine reaches to set running condition it is automatically switched over to manual mode to stop the engine manually as per the “FIRE FIGHTING NORMS”. It accepts input faults (Potential free Contact) like LLOP, over speed, over heat, etc. Any one of the input fault occurs, the corresponding LED window starts flashing & gives signal to hooter relay for audio alarm. Hooter is provided in control panel for audio alarm. Input faults are site selectable (“NO” & “NC”). Dual rate flashing is provided for differentiating the first & subsequent fault. The setting for “ON TIME”, “OFF TIME” & Attempt for CRANK can be done by “DIP SWITCH” provided on the backside of controller. Maximum four attempts can be selected. |
| |
| SMPS Battery charger is provided to charge main & standby battery in trickle & boost mode automatically. |
| |
| Battery charger is automatically disconnected when Engine is in running condition. |
| TOP |
| ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| |
Diesel Engine Controller |
| |
 |
| TOP |
|
| |
| Sailent Feature - |
| |
| • |
Based on latest “Micro-controller” technology. |
| • |
Sleek, Compact design for reliable and accurate operation. |
| • |
Series of super bright LED's instead of twin filament lamps for ultimate life at very less power consumption. |
| • |
Fault input contacts NO/NC site selectable by means of DIP switches. |
| • |
Opto-isolated all fault inputs, immune to noise disturbances. |
| • |
Provision for external audible (Bell or Hooter) thro' potential free relay output contact. |
| • |
Built-in feather touch push buttons for Test, Accept and Reset, Auo / Manual, Start, Stop functions. |
| • |
Various Settings Provided by Dip Switches : No. of Crank Attempt, Crank On Time, Crank - off Time. |
| • |
Relay o/p for 1) Start Solenoid 2) Stop solenoid |
| • |
Two part connector ensures easy replacement and service at site. |
| • |
Suitable to all Diesel Engine ( Start Solenoid or fuel Solenoid) |
| • |
Auto and Manual Mode. |
|
| TOP |
| ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| |
| |
AMF Controller |
| TOP |
 |
| TOP |
|
| Sailent Feature - |
| |
| • |
Based on latest “Micro-controller” technology. |
| • |
Sleek, Compact design for reliable and accurate operation. |
| • |
Series of super bright LED's instead of twin filament lamps for ultimate life at very less power consumption. |
| • |
Fault input contacts NO/NC site selectable by means of DIP switches. |
| • |
Opto-isolated all fault inputs, immune to noise disturbances. |
| • |
Provision for external audible (Bell or Hooter) thro' potential free relay output contact. |
| • |
Built-in feather touch push buttons for Test, Accept and Reset, Auo / Manual, Start, Stop functions. |
| • |
Various Settings Provided by Dip Switches : No. of Crank Attempt, Crank On Time, Crank - off Time. |
| • |
Relay o/p for 1) Start Solenoid 2) Stop solenoid |
| • |
Two part connector ensures easy replacement and service at site. |
| • |
Suitable to all Diesel Engine ( Start Solenoid or fuel Solenoid) |
| • |
Auto and Manual Mode. |
|
| TOP |
| ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| |
| |

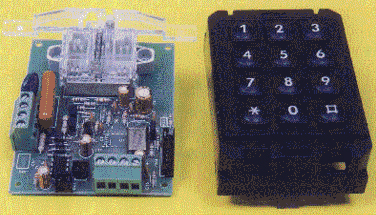

Industrial Telephone Circuit |
| |
 |
| TOP |
|
| Sailent Feature - |
| |
| • |
Compact in Size. |
| • |
Reliable and Precise. |
| • |
Last Number Redail facility (LNR 32 Digit) |
| • |
Flash Function |
| • |
Pulse & Tone mode selection at start up |
| • |
LED output for DTMF dailling indication |
| • |
Ear piece volume control facility. |
| • |
External ringer facility with volume control. |
|
