Variable Speed Pulley For Heidelberg Printing Machine, Variable Speed Geared Motor, R – Drive


Products

• VARIABLE SPEED PULLEY for Heidelberg Printing Machine (k-series)

VARIABLE SPEED PULLEY for Heidelberg Printing Machine
Pulleys Suitable For : Kord 62, Kord 64, kors, Kora, Sor & Sork Series.



• VARIABLE SPEED GEARED MOTOR

VARIABLE SPEED GEARED MOTOR
FEATURES:-
1)
Speed variation ratio 6:1
2)
Speed adjustment when the machine is in operation.
3)
Life time lubricated.
4)
Foot and Flange mounting to suit any position.
5)
Suitable for hazardous outdoor and dusty locations.
6)
Choice of Flame proof / TEFC / Brake motors.
7)
Optional remote control and speed indicator.
8)
Can be coupled with clutch brake assembly.
9)
Dual speed motor can be incorporated to achieve higher variation ratios.

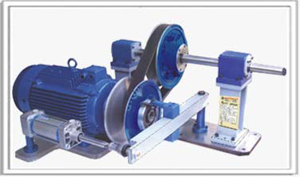

R – DRIVE SUITABLE FOR TEXTILE RING FRAME APPLICATION

R – DRIVE SUITABLE FOR TEXTILE RING FRAME APPLICATION
R-drive is specially designed for textile ring frame application with a base plate supplied with out motor. Base plate is provided with tapped holes for mounting of 15kw motor of frame size 160.

This drive is comprising of two pulleys and belt with a output shaft which can be Coupled to the machine.

The spindle speed can be nearly varied from 8000 to 22000 RPM with 16 step Programmable controler can be coupled to this unit.

Speed variation can be achived with Pneumatic achivator.
