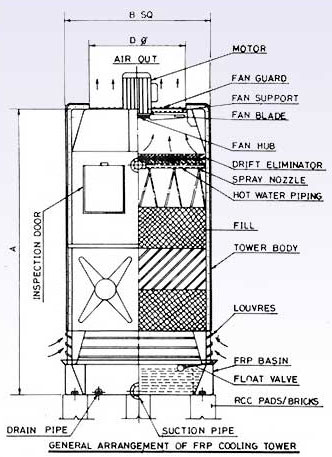

SALIENT
FEATURES & SPECIFICATIONS :
CASING : The casing is manufactured of Robust
FRP segments that can be easily handled during
transit, installation and maintainance of tower.
FILL: The fill comprises of
rigid P.V.C. UV stabilized, honeycomb, film flow
type. Designed to offer highest contact area per
unit volumn with least resistance to airflow.
FAN : The Axial flow fan
consists of cast Aluminum or FRP variable pitch
aerofoil blades fitted on a M.S. hot dip galvanized
hub with S.S. 304 "U" bolts & nuts. The balanced fan
assembly is mounted directly on the shaft of weather
proof, flanged motor.
WATER DISTRIBUTION : Hot water is sprayed
uniformly over the fill through Polypropylene / ABS
nozzles fitted on a M.S. Hot dip galvanised / PVC
distribution piping. The nozzles are accessible
through the inspection window provided on the tower
body.
DRIFT ELIMINATOR : The 2
pass drift eliminator consists if rigid PVC blades
with P.P. spacers, disigned to restrict drift losses
to below 0.05% of the water circulation rate. At the
same time offering minimum resistance to air flow.
BASIN : The tower is fitted
on FRP basin. The basin is placed on R.C.C. Pads /
slabs. The basin is provided with suction, make-up,
overflow & drain connections. |
