Thermally efficient, long life, compact and
aesthetically beautiful designs. Use of
maintenance-free, fixed type of distribution system,
PVC Honeycomb Fills to give film cooling,
weather-proof IP-55 enclosure of motors & FRP basin
for overflow and drain connector.
DESIGN :
BLUE CHIP Cooling Towers are in Counter flow design
to achieve optimum performance by Uniform water
distribution and optimal heat transfer.
CASING :
It is made of FRP segments and is structurally
strong enough to withstand various forces and
impact.
BASIN :
FRP type with fittings viz, make up, overflow &
drain connection. It is an optional feature.
|
FAN :
The fan is of Axial Flow type, and is directly
driven which saves from the perennial headche of
V-belts / Gear drive. The fan blades are of Cast
Aluminium alloy, and it is statically and
dynamically balanced.
FAN DRIVE MOTOR :
It is available in T.E.F.C. Weatherproof, IP-55
enclosure, Class 'B' insulation, suitable for
outdoor installation and is from reputed makes.
INSPECTION /
ACCESS WINDOW :
It is provided for maintenance and periodical
checking of the various segments of the Cooling
Tower, without disturbing the normal working of the
Cooling Tower.
GENERAL :
Blue-Chip Cooling Towers are Corrosion-free,
Light-weight, Compact, Portable and very easy to
install and maintain. They are truly a "Customer's
Delight."
1. Induced Draft - Assured Performance
2. FRP Construction - Corrosion Free, Compact, Light
Weight
3. Steady distribution System - Maintenance Free
4. Inspection Window - Easy Maintenance

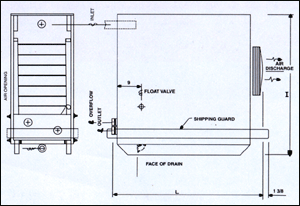

Timber Induced Draft
Tower
 |
Unique
Timber Cross flow Towers by use of Seagull Bars
either in PVC or in Steel, 'C' type Drift
Eliminators, Aerodynamic FRP Fans, Drives with or
without Gear Boxes, all to give highest thermal
efficiency. Use of Seagull Bars ensure film & splash
cooling both. This gives more capacity by 20-25%
over the conventional fill design.
STRUCTURE :
Selected quality Pine Wood as per IS 2372 treated
with Chromated Cooper Arsenate ( ASCU Chemicals ) as
per IS 401.
WATER DISTRIBUTION :
Open gravity type basin made of tongue and grooved
treated timber Plank / marine plywood fitted with
polypropylene spiral target nozzles to have uniform
hot water distribution over the entire fill area. |
FILL :
ASCU treated timber splash bars fill supported on
GRP grids.
DRIFT ELIMINATOR :
Made of treated timber planks supported on grooved
treated plywood Eliminator frame in herringbone
pattern.
CASINGS & LOUVERS :
Corrugated Asbestos Cement-Board / Corrugated FRP
sheet on special applications.
HARD WARES :
Structural connections are made with Hot Dipped
Galvanized bolts. Nails are of stainless steel (304
quality), screw shank type S.S.304 / 316-quality.
MECHANICAL EQUIPMENTS : FAN : Propeller Type
multi-bladed fan assembly. Blades are of cast
Aluminium alloy and hub of cast iron. Fan directly
coupled with motor.
FAN CYLINDER : made of HDG Steel / FRP coated
Cylinder fitted with hot dipped galvanized steel fan
guard. MOTOR : New India or equivalent makes
415V/3PH /50Hz TEFC Weatherproof IP-54 enclosure.
Class-B insulation Flange mounted vertical motor
with extended shaft specially made for Cooling Tower
Applications.
|
|
