Gear Pumps
|
|
An ISO
9001 Company Engaged In Manufacturing Rotary Gear Pumps,
Self Priming Pumps, Lube Pumps, Oil Pumps, Lubricating
Pumps, Gear Pumps, Positive Displacement Pumps, Chemical
Process Pumps
|

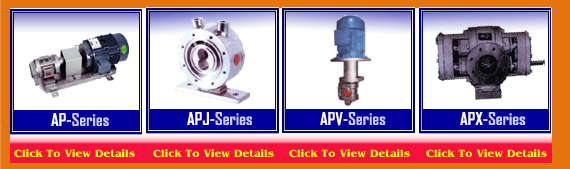

AP General purpose
Foot type CI gear pump with single helical gears and built in pressure relief valve.
This pumps works exceptionally well with applications were high temperature is your major concern. It can withstand temperatures up to
300 Degree Centigrade. The space occupied by this type of pump is very less.
|
| -------------------------------------------------------------------------------------------- |
APJ ( Steam jacketed pumps )
These pumps are specially suitable for liquids which solidify or become highly viscous at room temperature like LSHS, HHS, Glucose, Soap Stock, High Viscosity oils, Wax, Grease, Coal tar, Bitumen, Adhesives etc. Steam is circulated in the pump body to heat the liquid being pumped. |
| -------------------------------------------------------------------------------------------- |
APV ( Vertical pumps )
Modified version of AP series pumps with flange mounting. Specially suitable for OEMS. |
-------------------------------------------------------------------------------------------- |
APX ( External bearings )
It is an externally lubricated pump recommended for use where the liquid to be transferred does not contain any lubricating properties. Here the bearings fitted in bearing covers are independently lubricated and separated from the pumping chamber by means of Viton 'V' seal. |
| -------------------------------------------------------------------------------------------- |
| |
|
| |
| |
|
|
|
