Lifting Equipment Material Handling Equipments Manufacturers

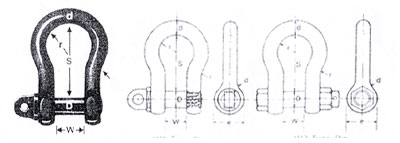

Bow Shackles - Quenched & Tempered

1) Recommended working load limit in tonnes stamped on each shackles
2) Average working load limit to ultimate breaking load is 6 to 1 up to 50 tonnes 5 to 1 from 62 tonnes and over
3) Proof lead equals twice working load limit upto 25 tonnes over this size according to IDWR specifications ISWL x 1.22 + 20)
4) When ordering give shackle load with type of pin required Example 6½ tonnes Wt
5) Test certificate from our Govt approved test house for IDWR chief inspectorate of factories can be provided.

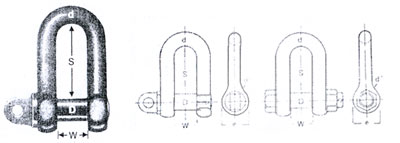

Alloy Steel Dee Shackles - Quenched & Tempered

1) Recommended working load limit in tonnes stamped on each shackles
2) Average working load limit to ultimate breaking load is 6 to 1 up to 50 tonnes 5 to 1 from 62 tonnes and over
3) Proof lead equals twice working load limit upto 25 tonnes over this size according to IDWR specifications ISWL x 1.22 + 20)
4) When ordering give shackle load with type of pin required Example 6½ tonnes Wt
5) Test certificate from our Govt approved test house for IDWR chief inspectorate of factories can be provided.

Pulling and lifting machine HY-TACK RDSO Approved

Multipurpose, Universal, gearless, hand operated pulling and lifting machine, complete with standard length of super flex plough steel wire rope (IS-2266) fitted with 'Eye-Hook' / Dee -Shackle' at one end and fused and tapered at the other end along with telescopic operating handle.

Exclusive Features

Casing : Made of pressed steel (Galvanised) or graded aluminum for light weight with a high factor of safety
Jaw : Manufactured from special alloy steel, accurately machined & heat treated so as to avoid slippage of wire rope under load
Jaw Links : Forged steel & Heat treated for greater strength
Hooks / Deshackle  : Alloy steel forged and zinc plated as per IS : 1573
Wire Rope : Super flex plough steel as per IS 2266 with Heavy coating as per IS - 4826
