Universal Wire Products a wide range of perforated metal sheets punched in mild steel, galvanised, aluminium, stainless steel and special alloys. Standard specifications can be supplied as per your requirement and dispatched within 3-4 days. Universal Wire Products Stainless Steel perforated metals are used extensively in the engineering, food processing, building, agricultural, nuclear power and petrochemical industries and many others. |
|
| |
Expanded Metal |
 |
Expanded Metal is made from sheets of solid metals that all are slit and stretched with each stroke of the upper die, forming a raised diamond pattern.
This pattern is called regular or standard. This pattern varies by the gauge and type of material and the size of the diamond.The sheets can also be flattened by rollers for an optional style by pasing them through a cold, roll reducing mill.
Expanded metal also can be manufactured in heavy gauges for applications such as walkways, ramps, and catwalks of all types. Frequently, the heavier gratings and catwalks are used in industrial plants for flooring and stain treads.
Due to the flexibility in materials and the sizes that it can be manufactured, expanded metal has a large application in filtration purposes. Thicker sizes with apertures above ½" also has certain general purpose applications like partitioning and covering for security.
Manufactured in Mild Steel (M.S.), Galvanised Iron (G.I.), Stainless Steel 304, 316 (S.S.) Aluminum ( AL.) from 0.5 mm opening to 50 mm opening in all possible thickness. |
|
| |

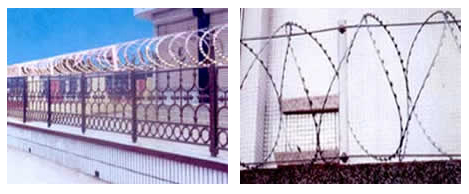

Concertina Wire |
 |
| Concertina Wire is manufactured using a central core of high tensile wire around which a tape of razor sharp barbs is machine crimped. Concertina wire is very strong and reinforced with a steel coil which makes it very hard to bend while the barbes have a piercing and gripping action. Generally used for fencing borders for security purposes. |
| Coil Diameters (mm) |
Coil Diameters (inches) |
Spiral Turns per coil |
Recommended Stretched Length (mtrs) |
Clips per Spiral |
| 450mm |
18 inches |
50/51 |
8m to 10m |
3 |
| 610mm |
24 inches |
55/56 |
8m to 10m |
5 |
| 750mm |
30 inches |
55/56 |
8m to 10m |
5 |
| 900mm |
36 inches |
55/56 |
10m to 12m |
5 |
| 1050mm |
42 inches |
55/56 |
10m to 12m |
5 to 7 |
|
| |
Chain Link Fence |
We produces and supplies stainless steel wire of complete sizes. We are especially experienced in producing stainless steel fine wire.
Features of Stainless Steel Wire: High strength, excellent anti-corrosion property, good preventing and anti-radiating property.
Applications of Stainless Steel Wire: Airspace, military, medicine, chemical industry, petroleum chemical, etc.
Specifications: 0.018 to 0.9mm. Custom orders accepted. Diamond wiremeshclassification: PVC-coated wire chain link fence Galvanized wire chain link fence Aluminium alloy wire chain link fence Sainless steel wire chain link fence |
| |
|
| |
|
