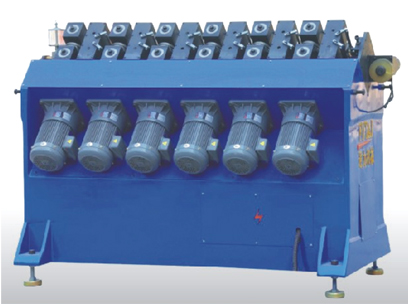

Tube Rolling Machine TL -101
|
|
| |
|
| |
| TL - 101 Tube rolling machine is used for
compacting elements in order to increase the density of MgO. It
has been well-received in France, Japan and other countries. |
| |
| Functions : |
1.The frame of this machine is made out of
pig iron casting. The rocker die and tank are integral linear
cutting. This machine is also equipped with fine-tuning dial,
automatically removing sundries device and automatically cooling
system.
2. According to the tube size and your special requirements, we
have two types of motor of pinch roller for your choice. They
are non-uniform speed (different speed) and uniform speed.
The former make the tube better ductility, while the latter
applies 10 the lube with large diameter.
3. When the tube specifications changed, we only need to replace
a set of pinch rollers. The pinch rollers can be classified into
two categories: high speed steel and tungsten carbide alloy.
4. Automatically stop when clogging.
5. This machine is of small size, low noise, convenient
adjustments.
6. Applicable tube: Copper, iron, aluminum, stainless steel, etc. |
| |

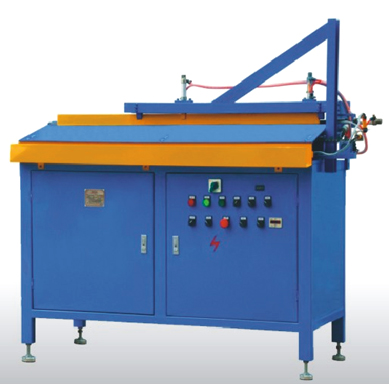

Tube Feeding And Testing Machine TL -107
|
|
| |
|
| Is used to test the tube by high
voltage and then feed the tubes into tube rolling machine
automatically. |
| |
| Functions : |
1. PLC controlled automatically.
It feeds the elements with a consistent space between them.
2. Easy to operate, no operator is required.
3. Test tubes by high voltage and separate the undesirable
element automatically.
4. The feeding speed is adjustable, preventing any jam ups. |
| |
|

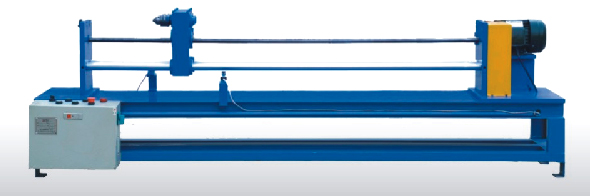

Dual Axis Strip Reeling Machine TL -126
|
|
| |
|
| Mainly used to reel radiation fins round the tubes. |
| |
| Functions : |
1. Controlling the segment pitch by change gears. It is very precise and stable.
2. Two tubes at a time, high efficiency can up to 1.6~1. 7m/min.(5mm segment pitch).
3. Easy to operate and stable quaiity. |
| |
| Main Technical Parameters |
1. Power supply: Triphase 380V, 50Hz.
2. Rated power: 750W.
3. Applicable tube diameter: <ll6mm-<ll13mm(over this range can be custom-made)
4. Appiicable tube length: 200mm-1800mm (above 1800mm can be finished by repeating the movement on several segments)
5. Size( LxW x H) :2500 x 750x 800(mm).
6. Weight: 300kg. |
|
|
| |

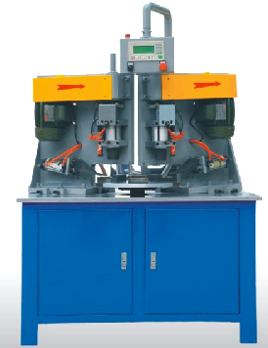

Auto Rotary Turning Machine TL -156
|
|
| |
|
| Mainly used to process the ends of electric iron heating tube, and some other die-casting tubes. |
| |
| Functions : |
1. PLC automatically controlled, human-computer interface
2. lntelligent design. fault alarm and remind automatically.
3. Delicate decollator dividing, precise positioning. |
| |
| Main Technical Parameters |
1. Power supply: Triphase 3S0V. 50Hz
2. Rated power: 1.2KW
3. Air supply: 5 -7kg/cm2
4. Efficiency: Above 4500pcs/8h
5. Size ( LxWxH ) : 8OOx8OOx660(mm)
6. Weight : 600kg |
|
| |
| |
|
| |
|
