Motors |

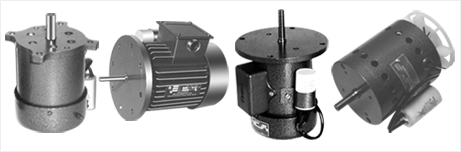

Electric Motor - Fractional Horse Power. - Single Phase / Three Phase A.C. |
|
| After prolonged experiments tests and trials, we have developed most ideal Prime over - 'DELCO' FRACTIONAL HORSE POWER - SPECIAL PURPOSE, CUSTOM BUILT ELECTRIC MOTORS, to meet individual requirements considering H.P., size, shape, shaft details, special mounting arrangement if any etc. |
| |
| Construction Features |
- Moisture resistant winding system & stator assembly are designed to provide more in less space.
- Class of insulation 'B', 'E', 'F' or 'H'.
- Available in two, four & six pole capacitor start & run single phase & three phase design.
- Shaft dia & extension either on one or both ends as per the requirements. Shaft of EN 8 or S.S.
- Motor totally covered in aluminum cast body & end shields.
- Bearing - ball bearing.
- Protection class IP44, when being installed
- Built in Thermocontact provided on request or Impedance protection
|
| |
Geared Motors |

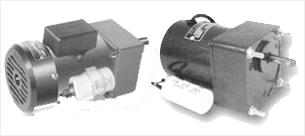

A. C. Single Phase Capacitor Run / Three Phase Geared Instrument Motors |
|
| Delco offers single phase capacitor run & three phase geared instrument motors. Totally enclosed face / foot mounted, fan cooled, of wide variety & range to meet trouble free application for original equipment manufacturers. |
| |
Worm Geared Motor |
Construction Features:
- Ball bearing to motor and Gear Box also
- Shaft dia(max. 15 mm) & length to suit
- Output shaft drive clockwise/ counter clockwise
- Motor-single phase capacitor run/Three phase 50 Hz
- Motor power 1/20 to 1/8 h.p.
- Out-put shaft perpendicular to Motor-Downward/upward or sideways
- Ratio's available -10 ,16,24,38,48
- Torque max. - 150 kg. cm.
Feature:
- Low noise Gear design
- Compact size with strong output
- Wide variety available
- Long life expectancy
- Many more products to come.
|
Engineering data/specification for some of the standard motors
|
|
| |
FHP Motors |
Electric Motor - Fractional Horse Power.
Single Phase / Three Phase A.C. |

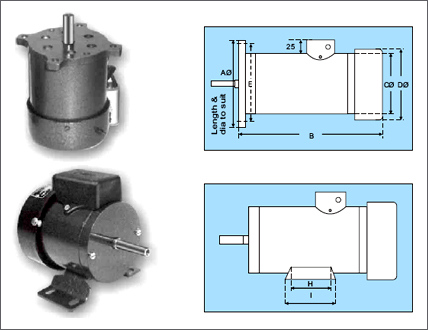

| Aluminium Die Cast Housing |
|
| CONSTRUCTION FEATURES : |
* |
Moisture resistant winding system & stator assembly are designed to provide more power in less space. |
* |
Class of insulation 'B', 'E', 'F' or 'H'. |
* |
Available in two, four & six pole, capacitor start & run single phase & three phase design 50 or 60 Hz. |
* |
Shaft dia & extension either on one or both ends as per the requirement. Shaft of EN 8 or S.S. |
* |
Motor totally enclosed in aluminum cast body & end shields |
* |
Bearing - ball bearing. |
* |
Protection class IP 44, when being installed. |
* |
Built-in Thermocontact provide on request or Impedance protection. |
|
| |
Instrument Cooling Fan |
| A.C. Instrument Cooling Fans |
 |
| Application Areas |
* |
Business Machines |
* |
Ultrasonic Equipments |
* |
Spark Erosion M/C |
* |
Medical Application |
* |
Water Coolers |
* |
Visi Coolers |
* |
Control Panels |
|
|
| |
|
|
|
Instrument Cooling Fans
(Party enclosed) |
Proudly present their quality,
Delco Instrument Fan, using latest technique in
manufacturing & design technology, to ensure highest
reliability & trouble free performance. These modern,
low priced, compact, sturdy & handy instrument is being
used to cooldown overheated parts in innumerable
Engineering fields. |
| |
| Specifications :- |
* |
Motor : Two pole, shade pole
partly enclosed 220 / 230 VAC, 50 Hz, 2800 RPM. |
| |
|
| |
|
| |
