Continuous Spirally Wound Finned Tubes, Finned Coils and Heat Transfer Equipments, Mumbai, India

Continuous Spirally Wound Finned Tubes, Finned Coils & Heat Transfer Equipments, Industrial Radiators, Heating Elements, Chemical Plant Machinery, Chemical Equipments


 Fin Tubes

Fin Coils

finned tubes

finned tubes

 PRODUCTS

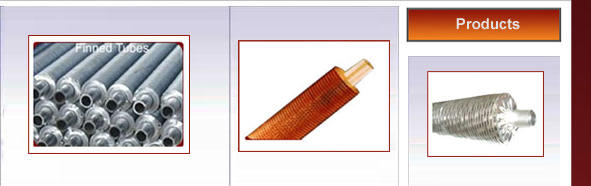

Fin Tubes

We are a leading manufacturers of " Continuous Spirally Wound Finned Tubes " Our MEI Brand Finned Tubes have Crimped fins which increases the overall heat transfer surface area. Quicker dissipation and higher heat-transfer co-efficient is obtained in Equipments fitted with our MEI Brand Finned Tubes.
Our Continuous Spiral Finned Tubes are made under high mechanical tension bonding process, in which fin material is helically wound over the tube to get maximum contact of tube and fin and only each Fins are brazed welded to core Tube. Therefore it achieves
highest efficiency and withstands high internal pressure.

These are used for heat transfer i.e. cooling, heating of water, steam, air, gases, oils and many other vapours, fluids etc. These Tubes are used in Finned Tube Heat Exchangers, Steam Radiators, Autoclaves, Condensers, Dryers, Ovens, Furnaces, Air Heaters,Oil Coolers, After Coolers, Air Compressors and in many other Heat Transfer Equipments. Our MEI Finned Tubes are widely used by Chemical, Petrochemical,Fertilizer, Food, Pharmaceutical, Paper, Textile & several other Industries.
Technical Details
Tube           -  OD  8 mm to 50 mm
Fin              -  OD  21mm to 88 mm
                      (Depends on the OD of the tube)
Fin Spacing -  2 to 10 Fins per Inch.


Materials of Construction
Mild Steel
Stainless Steel,
Copper, Brass &
Combination of these materials

While sending enquiries please, furnish following details for enabling us to submit you a fare price quotation for exact and correct Finned Tubes required by you.

Tube : OD, Thickness, material
Fin    : OD, number of fins per inch
Length    : Total and Finned
Quantity : Required



Fin Coils


We manufacture " Continuous Spiral Fins" ( without tube ) i.e. Finned Coils, especially for shaped or any other odd prefabricated shaped tubes. These are widely used for Industrial electric, Finned Air Heaters and Air Compressors Cooling Tubes. Heat Transfer Efficiency increases substantially because of continuous crimped fin design. These Finned Coils are made according to the OD of the tube with fractional differences ranging from 8 mm to 50 mm.
